pC0073 EiCsm6 His6-TwinStrep-SUMO-BsaI

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pC0073 EiCsm6 His6-TwinStrep-SUMO-BsaI
出品公司: Addgene
目录编号: 115268
存储实验室: Feng Zhang

载体骨架基本信息
载体名称: SUMO bacterial expression vector
载体出品公司: --
载体抗性: 氨苄霉素
空载体大小: 6084 bp
完整质粒大小: 7377 bp
载体修饰: --
载体类型: 细菌表达
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: EiCsm6
物种来源: 意大利肠球菌
插入大小: 1293 bp
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: SUMO
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pC0073 EiCsm6 His6-TwinStrep-SUMO-BsaI was a gift from Feng Zhang (Addgene plasmid # 115268 ; http://n2t.net/addgene:115268 ; RRID:Addgene_115268)
参考文献部分: Multiplexed and portable nucleic acid detection platform with Cas13, Cas12a, and Csm6. Gootenberg JS, Abudayyeh OO, Kellner MJ, Joung J, Collins JJ, Zhang F. Science. 2018 Apr 27;360(6387):439-444. doi: 10.1126/science.aaq0179. Epub 2018 Feb 15. 10.1126/science.aaq0179 PubMed 29449508

载体图谱质粒图谱和多克隆位点信息

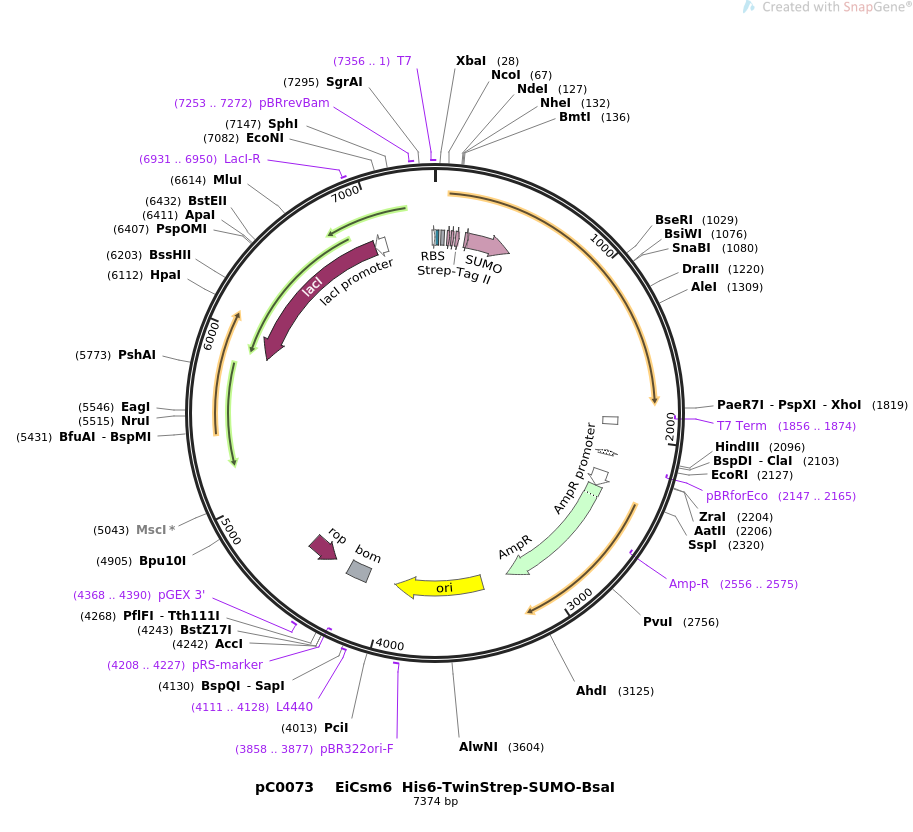

pC0073 EiCsm6 His6-TwinStrep-SUMO-BsaI质粒图谱

载体简介

载体序列

LOCUS       pC0073 EiCsm6 His6-TwinStrep-SUMO-BsaI                7374 bp ds-DNA     circular SYN 21-SEP-2018
DEFINITION  Expresses EiCsm6 from a SUMO-tagged bacterial expression construct.
ACCESSION   .
VERSION     .
KEYWORDS    pC0073	EiCsm6  His6-TwinStrep-SUMO-BsaI
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7374)
  AUTHORS   Gootenberg JS, Abudayyeh OO, Kellner MJ, Joung J, Collins JJ, Zhang
            F
  TITLE     Multiplexed and portable nucleic acid detection platform with Cas13,
            Cas12a, and Csm6.
  JOURNAL   Science. 2018 Apr 27;360(6387):439-444. doi:
            10.1126/science.aaq0179. Epub 2018 Feb 15.
  PUBMED    29449508
REFERENCE   2  (bases 1 to 7374)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 21, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7374
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     protein_bind    1..25
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             40..62
                     /note="efficient ribosome binding site from bacteriophage
                     T7 gene 10 (Olins and Rangwala, 1989)"
     CDS             81..98
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     CDS             108..125
                     /codon_start=1
                     /product="thrombin recognition and cleavage site"
                     /label=thrombin site
                     /translation="LVPRGS"
     CDS             138..161
                     /codon_start=1
                     /product="peptide that binds Strep-Tactin(R), an engineered
                     form of streptavidin"
                     /label=Strep-Tag II
                     /translation="WSHPQFEK"
     CDS             198..221
                     /codon_start=1
                     /product="peptide that binds Strep-Tactin(R), an engineered
                     form of streptavidin"
                     /label=Strep-Tag II
                     /translation="WSHPQFEK"
     CDS             222..512
                     /codon_start=1
                     /gene="S. cerevisiae SMT3 (truncated)"
                     /product="cleavable ubiquitin-like protein tag"
                     /label=SUMO
                     /translation="MSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPL
                     RRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIG"
     primer_bind     complement(1856..1874)
                     /label=T7 Term
                     /note="T7 terminator, reverse primer"
     terminator      1870..1917
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
     promoter        complement(2092..2120)
                     /label=tet promoter
                     /note="E. coli promoter for tetracycline efflux protein
                     gene"
     primer_bind     complement(2147..2165)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        2233..2337
                     /gene="bla"
                     /label=AmpR promoter
     CDS             2338..3198
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(2556..2575)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      3369..3957
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     3858..3877
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     4111..4128
                     /label=L4440
                     /note="L4440 vector, forward primer"
     misc_feature    4143..4282
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     complement(4208..4227)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4368..4390
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     CDS             complement(4384..4575)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
     CDS             complement(5887..6969)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     primer_bind     6931..6950
                     /label=LacI-R
                     /note="LacI, reverse primer"
     promoter        complement(6970..7047)
                     /gene="lacI"
                     /label=lacI promoter
     primer_bind     7253..7272
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
     primer_bind     7356..1
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        7356..7374
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
ORIGIN
        1 ggaattgtga gcggataaca attcccctct agaaataatt ttgtttaact ttaagaagga
       61 gatataccat gggcagcagc catcatcatc atcatcacag cagcggcctg gtgccgcgcg
      121 gcagccatat ggctagctgg agccatccgc agtttgaaaa aggtggtggt agcggtggtg
      181 gttcaggtgg tagtgcatgg tcacaccctc agtttgagaa aatgtcggac tcagaagtca
      241 atcaagaagc taagccagag gtcaagccag aagtcaagcc tgagactcac atcaatttaa
      301 aggtgtccga tggatcttca gagatcttct tcaagatcaa aaagaccact cctttaagaa
      361 ggctgatgga agcgttcgct aaaagacagg gtaaggaaat ggactcctta agattcttgt
      421 acgacggtat tagaatccaa gctgatcaga cccctgaaga tttggacatg gaggataacg
      481 atattattga ggctcacaga gaacagattg gtggatctat gaagattctt tttagcccga
      541 ttggcaacac agatccttgg cgcaatgacc gcgatggtgc gatgttgcac atcgttcgtc
      601 actaccaacc tgaccgtgta gtgctttttt ttaccgagtc catctggcaa gggaatcaac
      661 acttctcagg acaacaagcc tttgattggg tgaaaatcat tcagagtatt aacgagaact
      721 gtcagattga aattaaatgt gatactattg aggtggagaa tgatttcgat gcctacaaag
      781 atttgttcca tcagtactta gtcgaggaaa aacgtaaata tcctaatgct gaaattttcc
      841 tgaatgtcac aagcgggact ccgcagatgg aaacaacttt gtgccttgaa tatgtgactt
      901 accccgacaa aatgcgctgc attcaggtca gcaccccgct taagactagc aatgctaaaa
      961 ccaaatacgc gcaagccgat tgccaggaag ttgaccttga aatcgttaat gaagaggagt
     1021 ctcagcaacc ttcacgctgt cacaagatcg ctattctgag ctttcgtgaa gcaatcgtac
     1081 gtaatcagat caaatcatta cttgataatt acgactacga agccgcgctg cagcttgttg
     1141 catcacaaaa gagtttccgc aatgggaagg agattcgcaa aaagctgaaa gagctgatcg
     1201 acgacattaa gatgcaccgt gtgttctcat acttaatcaa acagtatccc cgcaacgaga
     1261 agttgcaaaa agctctgtta cacaccattc ttttagaaat gcgtcaccaa cgtggagaca
     1321 ttgccgaaac tctgatccgt gtaaagagta ttgcagagta tatcgtggaa caatatatcc
     1381 aaaagaacta tccatatctg atcatctaca aagaagacaa gccttacttc aacgttagct
     1441 acagtcaaga gctgaccgag agttatttgg ccctgatgga cagccgcaac aagaagacta
     1501 acaagaaaat gaccgtggac tccctggatc gtatcttggg gtttcccgct taccgcgatt
     1561 tcttgcaact gttagaagcc agcaacgaga tgactaacga gatgaataaa gtaaatgaaa
     1621 ttaataacct tcgcaataag gtcgcccata acttagacag tcttaattta gatcgtgaca
     1681 agaatggtcg caaaatcacg aatgcggtaa ctgcggtgcg caccatgctg ttggcggtct
     1741 tcccagaggt tcaggaaaac gacttccatt atttaaagca atttaatcag agcattaaag
     1801 aacttttgta aggccgcact cgaggcccga aaggaagctg agttggctgc tgccaccgct
     1861 gagcaataac tagcataacc ccttggggcc tctaaacggg tcttgagggg ttttttgctg
     1921 aaaggaggaa ctatatccgg atatcccgca agaggcccgg cagtaccggc ataaccaagc
     1981 ctatgcctac agcatccagg gtgacggtgc cgaggatgac gatgagcgca ttgttagatt
     2041 tcatacacgg tgcctgactg cgttagcaat ttaactgtga taaactaccg cattaaagct
     2101 tatcgatgat aagctgtcaa acatgagaat tcttgaagac gaaagggcct cgtgatacgc
     2161 ctatttttat aggttaatgt catgataata atggtttctt agacgtcagg tggcactttt
     2221 cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat
     2281 ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag gaagagtatg
     2341 agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg ccttcctgtt
     2401 tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt gggtgcacga
     2461 gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt tcgccccgaa
     2521 gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt attatcccgt
     2581 gttgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa tgacttggtt
     2641 gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag agaattatgc
     2701 agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac aacgatcgga
     2761 ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac tcgccttgat
     2821 cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac cacgatgcct
     2881 gcagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac tctagcttcc
     2941 cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact tctgcgctcg
     3001 gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg tgggtcacgc
     3061 ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt tatctacacg
     3121 acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat aggtgcctca
     3181 ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta gattgattta
     3241 aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa tctcatgacc
     3301 aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa
     3361 ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca
     3421 ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta
     3481 actggcttca gcagagcgca gataccaaat actgtccttc tagtgtagcc gtagttaggc
     3541 caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca
     3601 gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta
     3661 ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag
     3721 cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt
     3781 cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc
     3841 acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac
     3901 ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac
     3961 gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgttc
     4021 tttcctgcgt tatcccctga ttctgtggat aaccgtatta ccgcctttga gtgagctgat
     4081 accgctcgcc gcagccgaac gaccgagcgc agcgagtcag tgagcgagga agcggaagag
     4141 cgcctgatgc ggtattttct ccttacgcat ctgtgcggta tttcacaccg caatggtgca
     4201 ctctcagtac aatctgctct gatgccgcat agttaagcca gtatacactc cgctatcgct
     4261 acgtgactgg gtcatggctg cgccccgaca cccgccaaca cccgctgacg cgccctgacg
     4321 ggcttgtctg ctcccggcat ccgcttacag acaagctgtg accgtctccg ggagctgcat
     4381 gtgtcagagg ttttcaccgt catcaccgaa acgcgcgagg cagctgcggt aaagctcatc
     4441 agcgtggtcg tgaagcgatt cacagatgtc tgcctgttca tccgcgtcca gctcgttgag
     4501 tttctccaga agcgttaatg tctggcttct gataaagcgg gccatgttaa gggcggtttt
     4561 ttcctgtttg gtcactgatg cctccgtgta agggggattt ctgttcatgg gggtaatgat
     4621 accgatgaaa cgagagagga tgctcacgat acgggttact gatgatgaac atgcccggtt
     4681 actggaacgt tgtgagggta aacaactggc ggtatggatg cggcgggacc agagaaaaat
     4741 cactcagggt caatgccagc gcttcgttaa tacagatgta ggtgttccac agggtagcca
     4801 gcagcatcct gcgatgcaga tccggaacat aatggtgcag ggcgctgact tccgcgtttc
     4861 cagactttac gaaacacgga aaccgaagac cattcatgtt gttgctcagg tcgcagacgt
     4921 tttgcagcag cagtcgcttc acgttcgctc gcgtatcggt gattcattct gctaaccagt
     4981 aaggcaaccc cgccagccta gccgggtcct caacgacagg agcacgatca tgcgcacccg
     5041 tggccaggac ccaacgctgc ccgagatgcg ccgcgtgcgg ctgctggaga tggcggacgc
     5101 gatggatatg ttctgccaag ggttggtttg cgcattcaca gttctccgca agaattgatt
     5161 ggctccaatt cttggagtgg tgaatccgtt agcgaggtgc cgccggcttc cattcaggtc
     5221 gaggtggccc ggctccatgc accgcgacgc aacgcgggga ggcagacaag gtatagggcg
     5281 gcgcctacaa tccatgccaa cccgttccat gtgctcgccg aggcggcata aatcgccgtg
     5341 acgatcagcg gtccaatgat cgaagttagg ctggtaagag ccgcgagcga tccttgaagc
     5401 tgtccctgat ggtcgtcatc tacctgcctg gacagcatgg cctgcaacgc gggcatcccg
     5461 atgccgccgg aagcgagaag aatcataatg gggaaggcca tccagcctcg cgtcgcgaac
     5521 gccagcaaga cgtagcccag cgcgtcggcc gccatgccgg cgataatggc ctgcttctcg
     5581 ccgaaacgtt tggtggcggg accagtgacg aaggcttgag cgagggcgtg caagattccg
     5641 aataccgcaa gcgacaggcc gatcatcgtc gcgctccagc gaaagcggtc ctcgccgaaa
     5701 atgacccaga gcgctgccgg cacctgtcct acgagttgca tgataaagaa gacagtcata
     5761 agtgcggcga cgatagtcat gccccgcgcc caccggaagg agctgactgg gttgaaggct
     5821 ctcaagggca tcggtcgaga tcccggtgcc taatgagtga gctaacttac attaattgcg
     5881 ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc
     5941 ggccaacgcg cggggagagg cggtttgcgt attgggcgcc agggtggttt ttcttttcac
     6001 cagtgagacg ggcaacagct gattgccctt caccgcctgg ccctgagaga gttgcagcaa
     6061 gcggtccacg ctggtttgcc ccagcaggcg aaaatcctgt ttgatggtgg ttaacggcgg
     6121 gatataacat gagctgtctt cggtatcgtc gtatcccact accgagatat ccgcaccaac
     6181 gcgcagcccg gactcggtaa tggcgcgcat tgcgcccagc gccatctgat cgttggcaac
     6241 cagcatcgca gtgggaacga tgccctcatt cagcatttgc atggtttgtt gaaaaccgga
     6301 catggcactc cagtcgcctt cccgttccgc tatcggctga atttgattgc gagtgagata
     6361 tttatgccag ccagccagac gcagacgcgc cgagacagaa cttaatgggc ccgctaacag
     6421 cgcgatttgc tggtgaccca atgcgaccag atgctccacg cccagtcgcg taccgtcttc
     6481 atgggagaaa ataatactgt tgatgggtgt ctggtcagag acatcaagaa ataacgccgg
     6541 aacattagtg caggcagctt ccacagcaat ggcatcctgg tcatccagcg gatagttaat
     6601 gatcagccca ctgacgcgtt gcgcgagaag attgtgcacc gccgctttac aggcttcgac
     6661 gccgcttcgt tctaccatcg acaccaccac gctggcaccc agttgatcgg cgcgagattt
     6721 aatcgccgcg acaatttgcg acggcgcgtg cagggccaga ctggaggtgg caacgccaat
     6781 cagcaacgac tgtttgcccg ccagttgttg tgccacgcgg ttgggaatgt aattcagctc
     6841 cgccatcgcc gcttccactt tttcccgcgt tttcgcagaa acgtggctgg cctggttcac
     6901 cacgcgggaa acggtctgat aagagacacc ggcatactct gcgacatcgt ataacgttac
     6961 tggtttcaca ttcaccaccc tgaattgact ctcttccggg cgctatcatg ccataccgcg
     7021 aaaggttttg cgccattcga tggtgtccgg gatctcgacg ctctccctta tgcgactcct
     7081 gcattaggaa gcagcccagt agtaggttga ggccgttgag caccgccgcc gcaaggaatg
     7141 gtgcatgcaa ggagatggcg cccaacagtc ccccggccac ggggcctgcc accataccca
     7201 cgccgaaaca agcgctcatg agcccgaagt ggcgagcccg atcttcccca tcggtgatgt
     7261 cggcgatata ggcgccagca accgcacctg tggcgccggt gatgccggcc acgatgcgtc
     7321 cggcgtagag gatcgagatc tcgatcccgc gaaattaata cgactcacta tagg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
